Mô tả sản phẩm

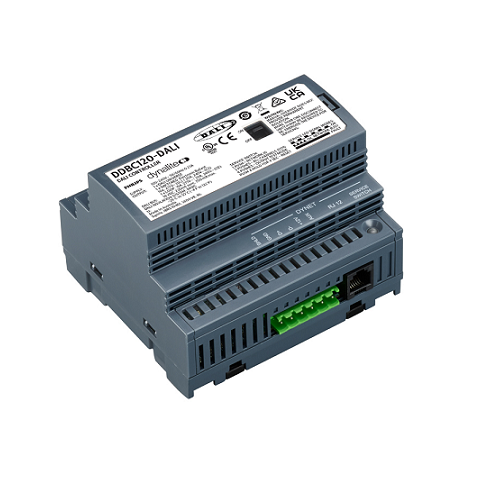

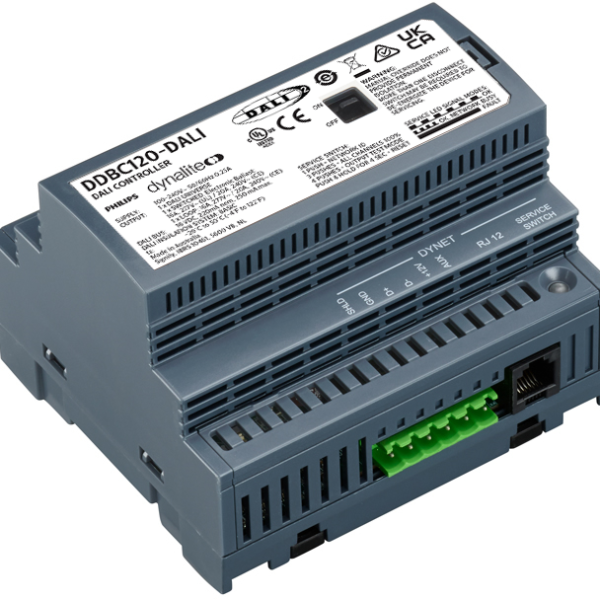

The Philips Dynalite DDBC120-DALI is ideal for small-scale projects looking for a compact, all-in-one DALI control solution.
This controller operates seamlessly with all other Dynalite controllers, sensors, user interfaces and head-end software.
- Single-master solution – Compatible with a range of DALI fittings and devices, including DALI fluorescent drivers, DALI electronic low voltage transformers, DALI LED fixtures, DALI emergency lighting fixtures and Philips Dynalite DALI sensors and user interfaces.
- Compatible with DALI 209 drivers – Provides control of tunable white luminaires.
- DALI auto-enumeration – Provides automatic enumeration of DALI drivers when powered on and enables self-repair of the network system if a DALI driver fails.
- Fully scalable network solution – Direct mapping from DALI to the DyNet network protocol eliminates DALI imposed limits, such as maximum group sizes.
- Flexible mounting solution – A DIN-rail mountable device, designed to be installed into the distribution board supplying power to the controlled lighting circuit.
- Dual functionality – Leverage advantages of a true DALI network solution, whilst still allowing full function set of DyNet network control.
- Driver standby power elimination – Internal switched relay automatically isolates the power circuit when all drivers are dimmed to 0%.
- Integral DALI bus power supply – Removes the need for provision of a separate external power supply and reduces distribution board wiring complexity.
- Driver management tools – Includes lamp and driver status reporting, driver run time tracking, and emergency test reporting.
- Onboard DALI test function – Use the controller’s service switch to set all connected lamps to full brightness, or flash on/off for a 5-minute test window, without the need for software or additional input devices.
Mô tả | • Bộ điều khiển DALI-2 |
Thông số kỹ thuật | • Cấp nguồn: 100-277 VAC • Ngõ ra cấp nguồn cho đèn: 1 x 20 A feed-through • Ngõ ra Dali: 1 x DALI-2 • Kích thước (HxWxD): 95 x 216 x 64 mm (3.74 x 8.50 x 2.52 in) |
Điều khiển | • Lập trình Dali |
