Mô tả sản phẩm

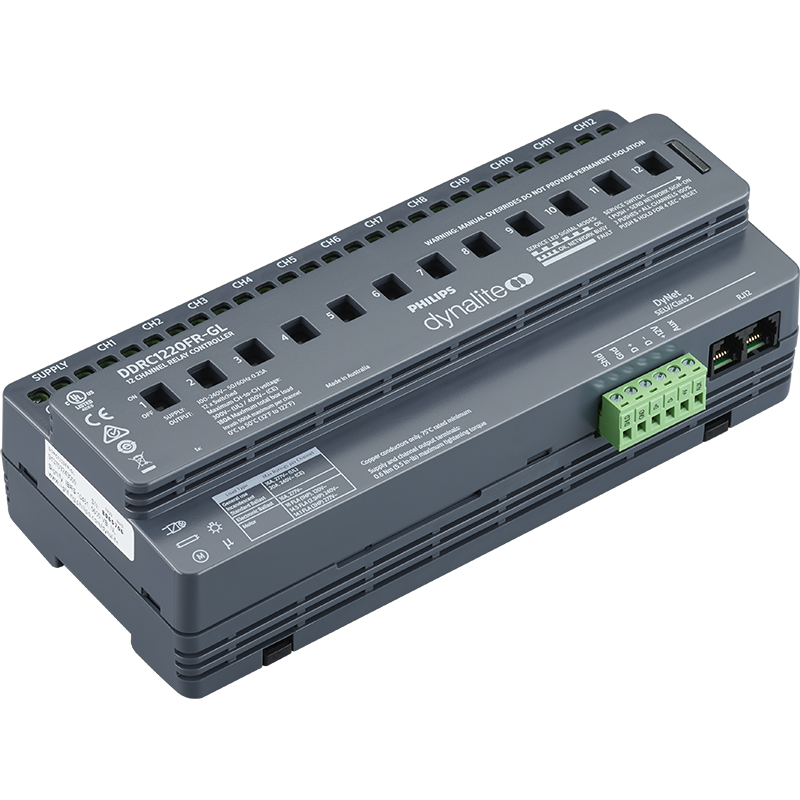

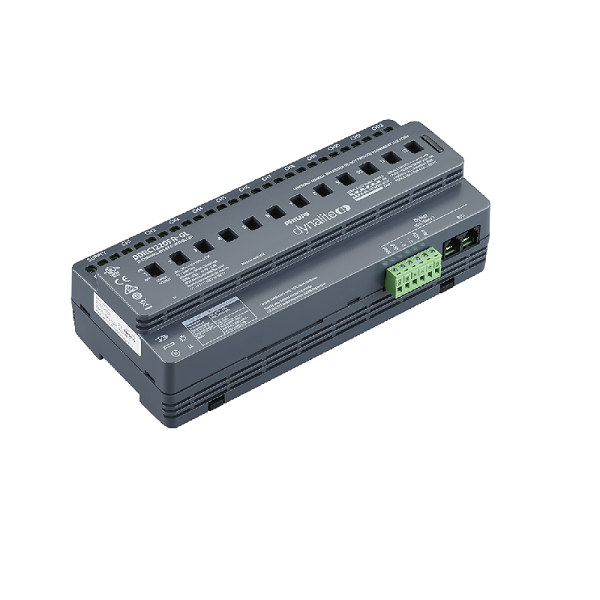

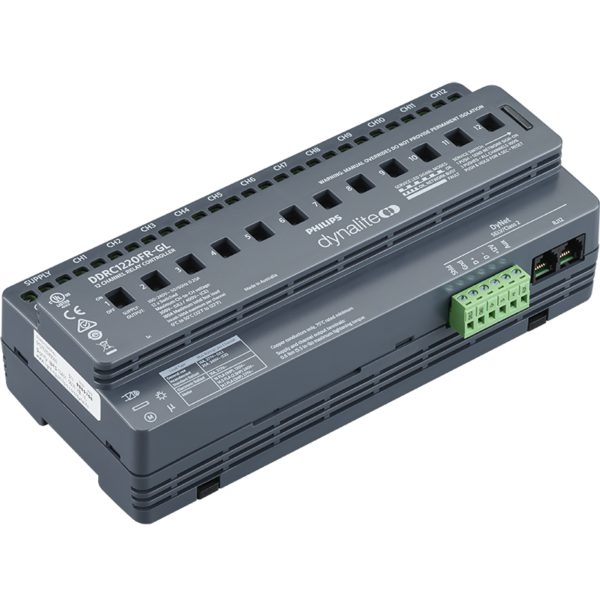

The Philips Dynalite DDRC1220FR-GL provides control of any type of switched load. All types of switched loads up to 20 A inductive are supported. The maximum load may be limited by 500 A inrush rating.
- Feed-through power circuit design – Electrically equivalent to a 12 pole contactor, with the added advantage of each pole being separately controllable via the DyNet network.
- Flexible mounting solution – A DIN-rail mountable device, designed to be installed into the distribution board supplying power to the controlled circuit.
- Inbuilt diagnostic functionality – Features circuit run time tracking on each channel and Device Online/Offline status indication.
- Multiple wiring schemes supported – Controls single phase and neutral or three phase and neutral (star) wiring configurations.
- Hardware override – Service override switch accessible from front panel.
Mô tả | • Bộ điều khiển Rơle 12 ngõ ra |
Thông số kỹ thuật | • Cấp nguồn: 100-240 VAC • Số ngõ ra: 12 x SPST feed-through relay with manual override • Dòng điện: 20 A/ngõ ra (max) • Chịu tải lớn nhất: 180A • Kích thước (HxWxD): 93x215x64mm(3.66×8.46×2.52in) |
Điều khiển | • Lập trình chức năng đóng/ngắt các ngõ ra |
