Mô tả sản phẩm

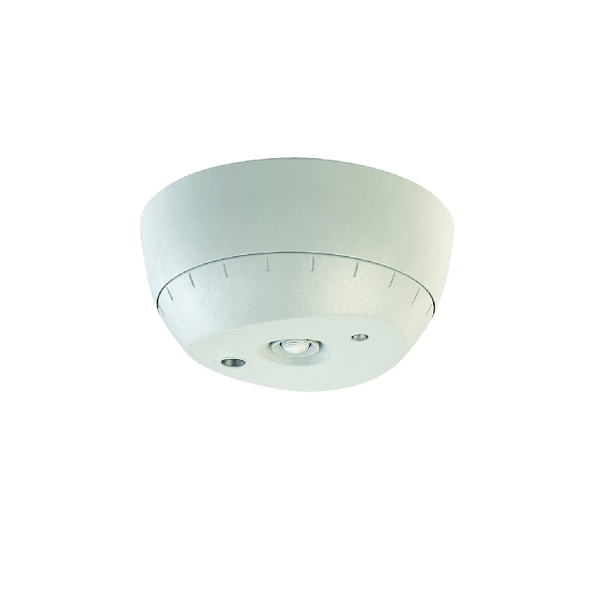

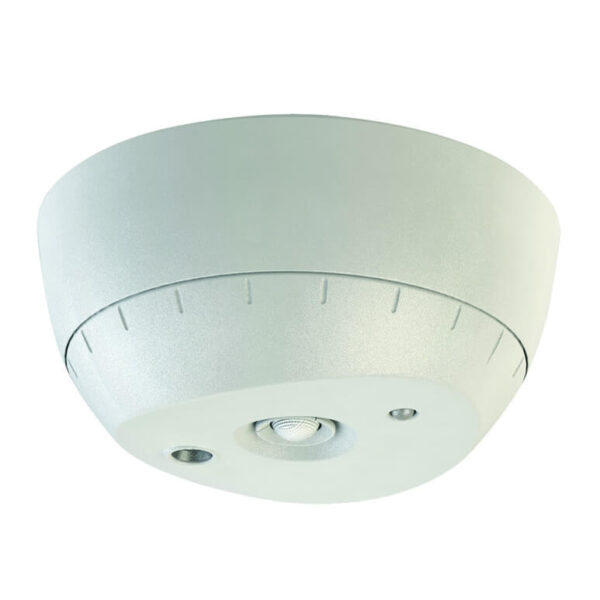

The Philips Dynalite DUS360CS-D is a surface mountable 360 degree multifunction sensor that combines motion detection (PIR), infrared remote control reception (IR) and ambient light level detection (PE) into one device in applications such as hotels, restaurants and homes.
- DALI device – Designed to operate seamlessly with the Philips Dynalite DDBC120-DALI or DDBC320-DALI controller.
- Powered directly by the DALI network – Eliminates the need for additional network field wiring.
- Motion detection feature – Detects the presence or absence of motion and adjusts lights accordingly.
- Segmented click-up bezel – Surrounds the motion sensor element and enables a portion of the sensing field to be masked. This prevents nuisance detection from adjacent doorways or corridors.
- Ambient light level regulation – In applications where it is critical to maintain precise light levels, the PE function reads ambient levels and adjusts artificial light accordingly.
- Multiple mounting options – Can be partially recessed or surface-mounted using the supplied butterfly clips or junction box.
- Daylight harvesting mode – Delivers automatic energy savings.
- Infrared receive capability – Manually adjust light levels using a hand-held remote control, via the inbuilt IR receiver.
- Corridor hold – Links corridor areas with adjacent rooms so corridor remains lit while occupancy is detected in adjacent rooms
Mô tả | • Cảm biến đa chức năng gắn nổi |
Thông số kỹ thuật | • Cấp nguồn: DALI / ELV • Loại cảm biến PIR: Quad element pyroelectric • Chiều cao lắp đặt: 2.1~4m • Vùng quét: max 5 m (16.4 ft)* • Cảm biến ánh sáng: 5-5000 lux • Cấp bảo vệ: IP20 • Kích thước (HxW): 41 x 72 mm (1.61 x 2.83 in) |
Kết nối | • Cổng ra: 1 x 2-way • Kích thước dây dẫn: 2.5 mm2 (#12 AWG) (max) |
Điều khiển | • Lập trình chức năng |
* Typical detection range at ≤ 25°C (77°F). Range is reduced at higher temperatures.
