Mô tả sản phẩm

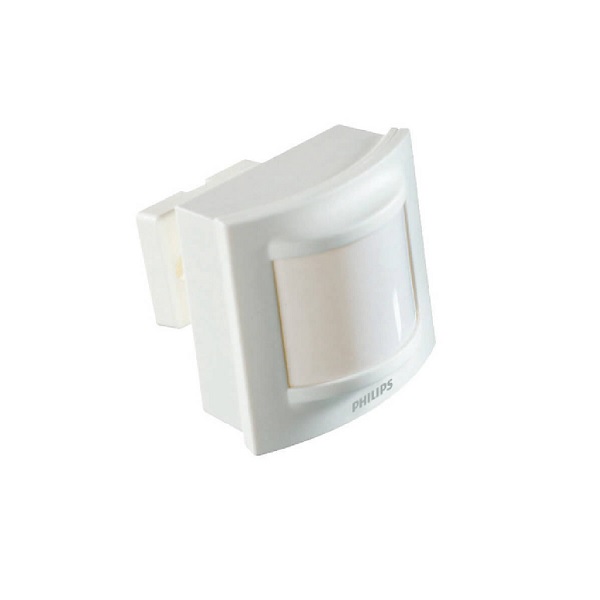

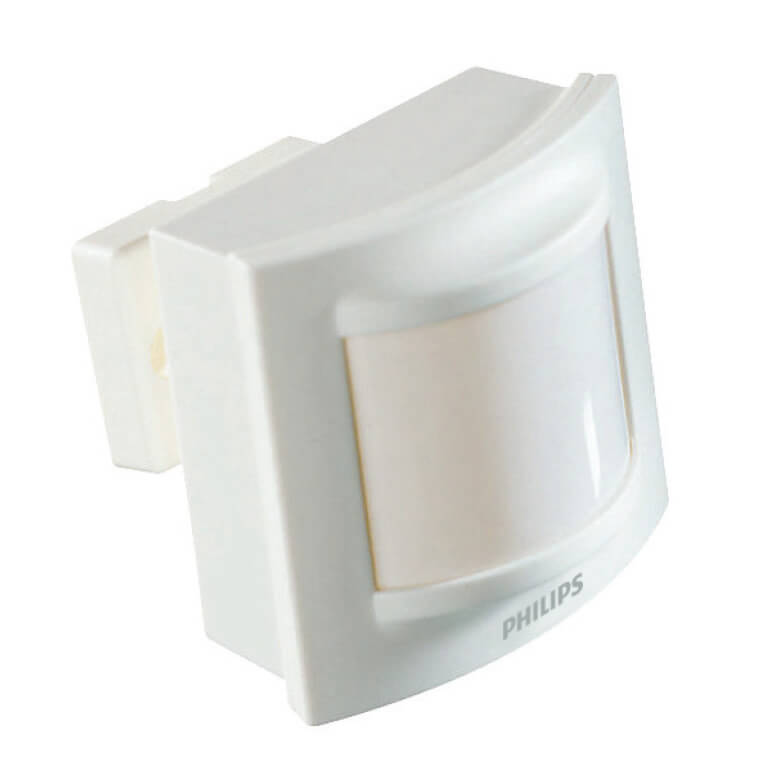

The Philips Dynalite DUS90AHB-D is a 90 degree multifunction sensor that combines motion detection (PIR) and ambient light level detection (PE) in one device. The sensor uses the DALI protocol for power and communications to a network control system, eliminating the need for additional network field wiring. This sensor is ideal for mounting between warehouse shelving.
- DALI device – Designed to operate seamlessly with the Philips Dynalite DDBC120-DALI or DDBC320-DALI controller.
- Powered directly by the DALI network – Eliminates the need for additional network field wiring.
- Motion detection feature – Detects the presence or absence of motion and triggers a programmed action.
- Ambient light level detection – In applications where it is critical to maintain precise lighting levels, the PE function reads ambient levels and adjusts artificial light accordingly.
- Daylight harvesting – When used in conjunction with networked open loop daylight sensor.
- Infrared receive capability – Enables sign-in identification to the networked system.
- Corridor hold – Links corridor areas with adjacent rooms so corridor remains lit while occupancy is detected in adjacent rooms.
- Targeted positioning – Directional wallmounting block allows sensors to be easily mounted and directed to the required area.
Mô tả | • Cảm biến đa chức năng cho lối đi gắn nổi trên cao |
Thông số kỹ thuật | • Cấp nguồn: DALI / ELV • Loại cảm biến PIR: Dual element pyroelectric • Chiều cao lắp đặt: <15m • Gốc quét: 90° • Cảm biến ánh sáng PE: 5-10 000 lux • Cấp bảo vệ: IP40 • Kích thước (HxWxD): 66 x 70 x 71 mm (2.60 x 2.76 x 2.80 in) |
Kết nối | • Cổng ra: 1 x 2-way • Kích thước dây dẫn: 0.75 mm2 (#18 AWG) (max) |
Điều khiển | • Lập trình chức năng |
* Typical detection range at ≤ 25°C (77°F). Range is reduced at higher temperatures.
